UV LED CURING SYSTEM/Air cooling curing system/UV LED Flexographic
curing system
The high-performance curing system LED powerline Flexo was
especially designed for curing highly reactive inks in flexo
printing applications. The LED curing unit has got a maximum output
of > 25 W/cm². According to the application, it is supplied as
an air-cooled or a water-cooled version.
UV-/LED-Hybrid is based on the water-cooled version. The unit can
be used as a conventional UV or a LED-UV curing device just by an
easy and fast-changing of the cartridge. The control unit instantly
recognizes what kind of technology is equipped and accordingly
adjusts all parameters automatically.
Flexo UV Curing Systems Main Characteristics
♦ Driving control: Modular power supply driving, PLC+touch screen
control, electrodeless dimming technology, zonal point technique,
accurate speed design, double anomaly detection.
♦ Professional team: Professional optical design, thermal design,
structural design, engineering surveying, retrofit installation
team
♦ Single lamp power consumption:3.5kw
♦ Strong customer support: Taiyo, Mark Andy, OUMIT, Power Light,
KAWATA.
♦ Suitable substrate: Coated paper,thin-film all kinds of materials
Flexo UV Curing Systems Features and Advantages:
1) Simple structure in UV led, easy in installation and maintain.
2) Adopting advanced world famous brand components in the UV led
curing system
3) High-intensitive UV output
4) Complete temperature detection
5) Stabilized drive control
6) High-efficiency cooling and heat dissipation
7) The modular design of UVLED lamp holder with flexible
specification
8) Large design margin of drive power supply ensures stable output
9) High-power COB module for high-intensity UV output
10) Optical design: Secondary patented optical design, take full
account of the balance light and heat, illuminate is up to 30w/cm2.
Flexo UV Curing Systems Specification
► Luminous intensity:30w/cm2
► The max.emitting area:470*40mm
► Wavelength:customized-365nm,385nm,395nm
► The max. print speed: more than 200m/min
► The surface temperature of the substrates can be controlled
within 38 degrees
| Description | Technical Parameter | NOTE |
| Item No | ULT350A / ULT350B | UV ink |
| Emitting area | 350mm | MarkAndy/Taiyo/Weifang |
| Wavelength | 380-390nm | |
| Intensity | 18-30w/cm2 | Measured by EIT UV meter |
| Paper temperature | 40-42℃ | / |
| Working power | 50% | White ink, black ink 60% |
| Cooling method | Water cooled+ Air cooled | / |
| Ventilation device | Heat dissipation, exhaust ink odor | / |
| Alarm | Over-temperature protect | / |
| PLC | Siemens PLCST20 | / |

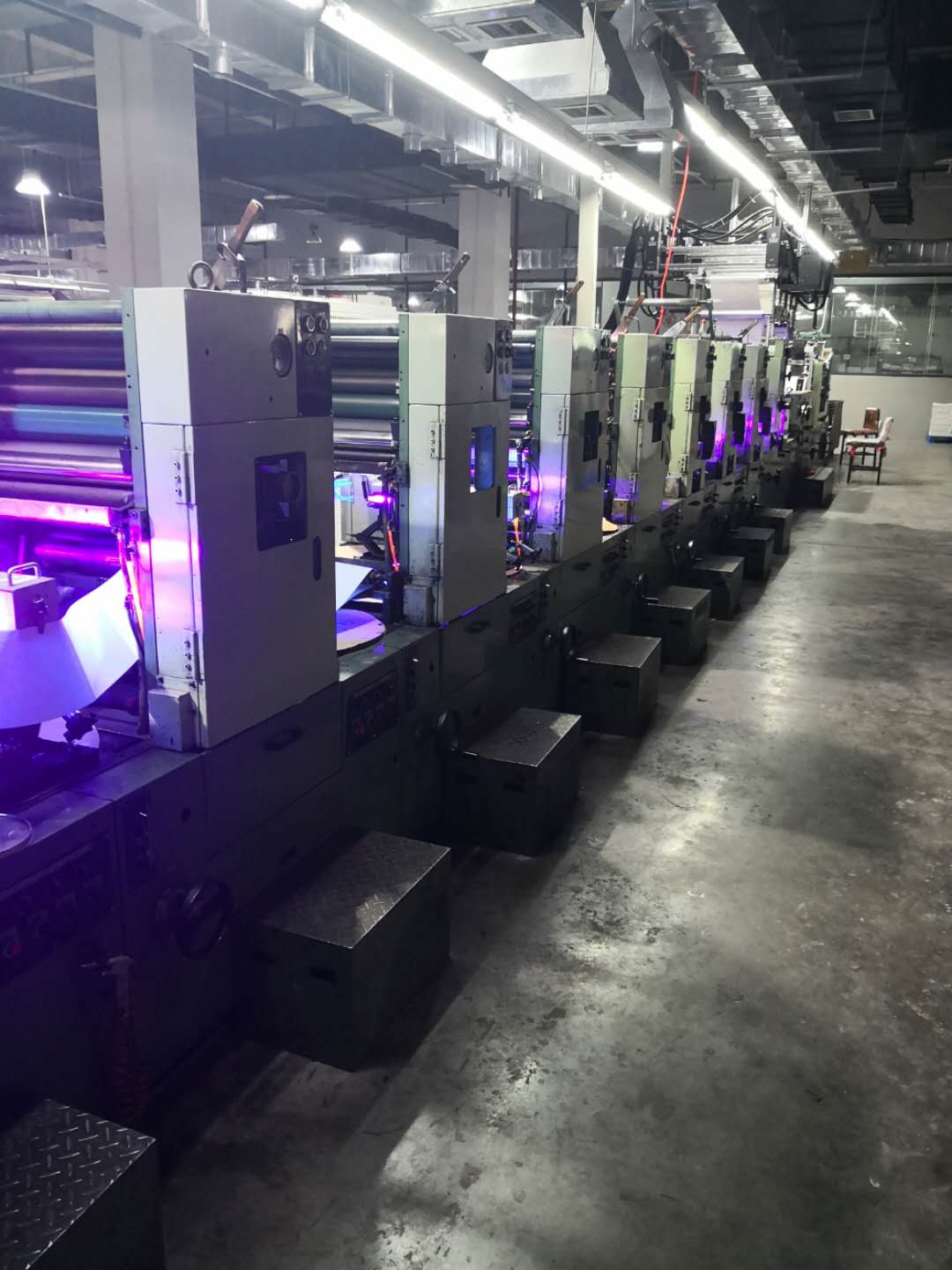

Flexo UV Curing Systems Application
Our Service:
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the UV LED curing system, training how to
use the UV LED
* Engineers available to service the system overseas.
FAQ:
Q1. Are you a manufacturer?
Yes, we independently research and develop the UV LED curing system
for flexo printer and we also have our own factory
Q2. What is your terms of payment?
T/T 50% as deposit, and 50% before delivery. We'll show you the
photos of the products and packages before you pay the balance.
Q3. How can your company help us to solve the technical problem?
We will help you in time by providing a detailed description,
sending the photo through the internet and telephone or sending our
engineer to your company personally.
Q4. How about your delivery time?
A: Generally, it will take 5 to 20 days after receiving your
advance payment. The specific delivery time depends on the items
and the quantity of your order.
Q5. Can you produce according to the requirement?
A: Yes, we can produce by your requirest or technical drawings.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but
the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have a 100% test before delivery
Q8: We want to become an exclusive distributor of your products?
We will look forward to becoming your close cooperator if you can
continue to order our UV LED curing system after the first order.
