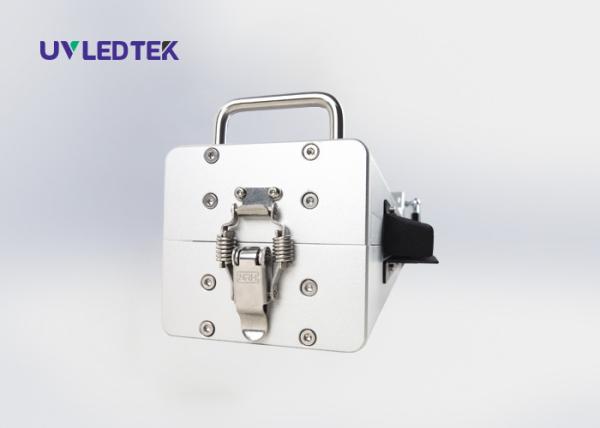

UV LED CURING SYSTEM/Air cooling curing system/UV LED Flexographic curing system

Users of UV LED flexo inks report significantly faster production speedscompared to existing UV curing technology. Additionally, UV LED curing systems offer more press uptime due to their significantly longer life, instant on/off capability, reduced maintenance time, and faster changeovers. UV LEDs operate up to 10 times longer (10,000+ hours) than medium pressure mercury arc UV curing systems. The instant on/off capability of UV LEDs means no more waiting to restart a press or deal with shutters as is required with arc UV lamps. Faster changeovers via flexible controls and curing adjustments such as wavelengths, working distance, dimming level (UV energy output) are possible with UV LED curing. All of these factors contribute to increased uptime resulting in higher production rates.

Flexo UV Curing Systems Main Characteristics

♦ Driving control: Modular power supply driving, PLC+touch screen control, electrodeless dimming technology, zonal point technique, accurate speed design, double anomaly detection.

♦ Professional team: Professional optical design, thermal design, structural design, engineering surveying, retrofit installation team

♦ Single lamp power consumption:3.5kw

♦ Strong customer support: Taiyo, Mark Andy, OUMIT, Power Light, KAWATA.

♦ Suitable substrate: Coated paper,thin-film all kinds of materials

Flexo UV Curing Systems Features and Advantages:

1) Simple structure in UV led, easy in installation and maintain.

2) Adopting advanced world famous brand components in the UV led curing system

3) High-intensitive UV output

4) Complete temperature detection

5) Stabilized drive control

6) High-efficiency cooling and heat dissipation

7) The modular design of UVLED lamp holder with flexible specification

8) Large design margin of drive power supply ensures stable output

9) High-power COB module for high-intensity UV output

10) Optical design: Secondary patented optical design, take full account of the balance light and heat, illuminate is up to 30w/cm2.

Flexo UV Curing Systems Specification

► Luminous intensity:30w/cm2

► The max.emitting area:470*40mm

► Wavelength:customized-365nm,385nm,395nm

► The max. print speed: more than 200m/min

► The surface temperature of the substrates can be controlled within 38 degrees

Our Facilities:

Flexo UV Curing Systems Application

Our Service:

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the UV LED curing system, training how to use the UV LED

* Engineers available to service the system overseas.

FAQ:

Q1. Are you a manufacturer?
Yes, we independently research and develop the UV LED curing system for flexo printer and we also have our own factory

Q2. What is your terms of payment?
T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. How can your company help us to solve the technical problem?
We will help you in time by providing a detailed description, sending the photo through the internet and telephone or sending our engineer to your company personally.

Q4. How about your delivery time?
A: Generally, it will take 5 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the requirement?
A: Yes, we can produce by your requirest or technical drawings.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have a 100% test before delivery

Q8: We want to become an exclusive distributor of your products?
We will look forward to becoming your close cooperator if you can continue to order our UV LED curing system after the first order.

Wuhan UV LEDTek Co., Ltd is located in Donghu High-tech Zone, Huagzhong University-Industry Park. It is dedicated to the research and development of UVLED chips and application products. We have owned the most advanced UVLED packaging line, high-end and strong R&D team, experienced engineering and technical team, professional and efficient sales team, strict and pragmatic quality control and perfect after-sales service team, we are the only domestic UV full band, the whole industrial chain, master the core technology of high-tech enterprises.

The UV LEDTek corp has the most advanced chip packaging production line and advanced chip packaging technology, the perfect inspection, testing equipment, the most efficient production process.
